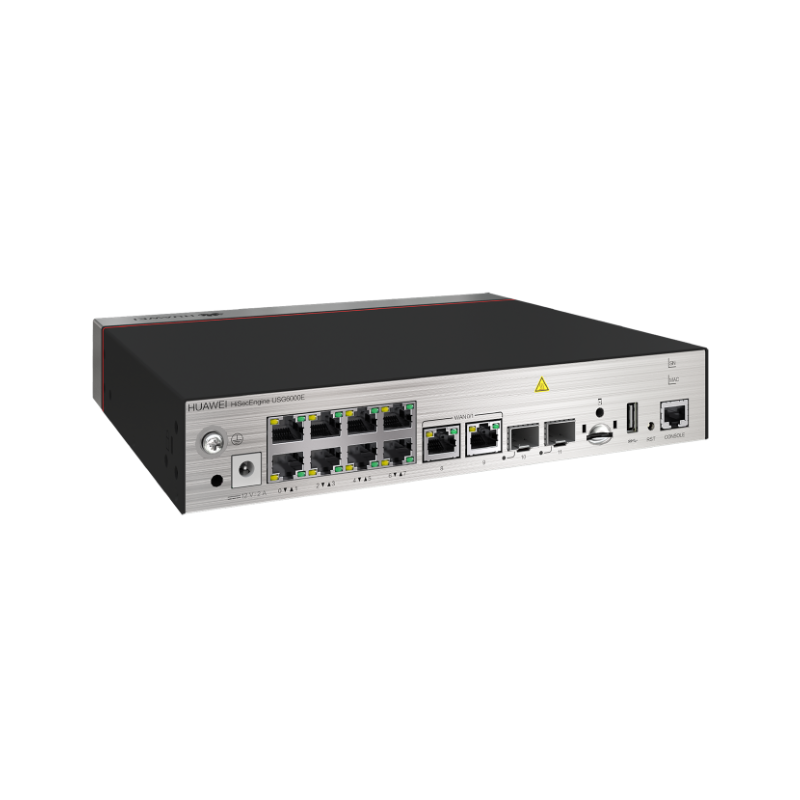

| Model | USG6510E |
| System Performance and Capacity |
| Firewall Throughput (1518/512/64-byte, UDP) | 1.2/1.2/1.2 Gbit/s |
| Firewall Latency (64-byte, UDP) | 15 µs |
| FW + SA + IPS Throughput | 0.6 Gbit/s |
| FW + SA + IPS + Antivirus Throughput | 0.6 Gbit/s |
| Concurrent Sessions (HTTP1.1) | 300,000 |
| New Sessions/Second (HTTP1.1) | 20,000 |
| Maximum IPsec VPN Tunnels (GW to GW) | 1,000 |
| Maximum IPsec VPN Tunnels (Client to GW) | 1,000 |
| IPsec VPN Throughput (AES-256 + SHA256, 1420-byte) | 1 Gbit/s |
| SSL Inspection Throughput | 200 Mbit/s |
| Concurrent SSL VPN Users (Default/Maximum) | 100/100 |
| Security Policies (Maximum) | 1,000 |
| Virtual Firewalls | 10 |
| URL Filtering: Categories | More than 130 |
| URL Filtering: URLs | A database of over 120 million URLs in the cloud |
| Automated Threat Feedback and IPS Signature Updates | Yes, an industry-leading security center from Huawei
(http://sec.huawei.com/sec/web/index.do) |
| Third-Party and Open-Source Ecosystem | • Open API for integration with third-party products, providing RESTful and NetConf interfaces
• Other third-party management software based on SNMP, SSH, and Syslog
• Cooperation with third-party tools, such as Tufin, AlgoSec, and FireMon
• Collaboration with anti-APT solution |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight. |
| VLANs (Maximum) | 4094 |
| VLANIF Interfaces (Maximum) | 256 |
| Hardware Specifications |
| Dimensions (H x W x D) mm | 43.6 x 250 x 210 |
| Form Factor/Height | Desktop |
| Fixed Interface | 2 x GE (SFP) + 10 x GE |
| USB Port | 1 x USB 3.0 |
| Weight (Full Configuration) | 1.5 kg |
| External Storage | Optional, Micro-SD card supported, 64 GB |
| AC Power Supply | 100V to 240V |
| Power | 36 W |
| Power Supplies | External power adapter |
