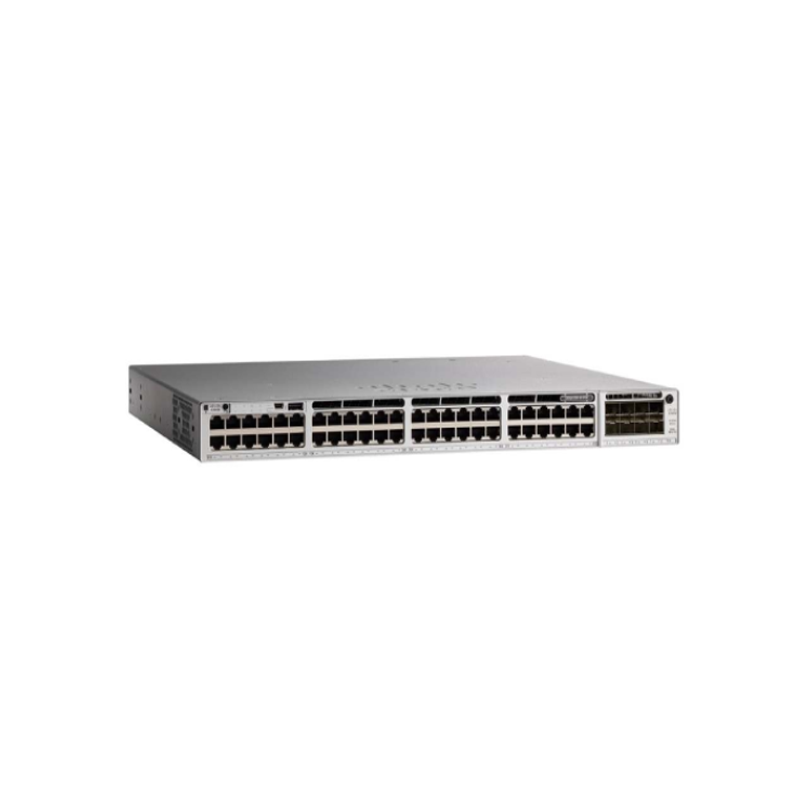

Switch Cisco Catalyst C9200-48T-E

Liên hệ

Thương hiệu CISCO

Chính sách bán hàng

Thùng gồm có: Sách hướng dẫn, phụ kiện
Bảo hành chính hãng: Sản phẩm bảo hành theo chính sách nhà sản xuất (xem điểm bảo hành)
Nhận hàng sau 1 tiếng khu vực Đà Nẵng, Tam Kỳ và 12 tiếng khu vực ngoài Đà Nẵng
Đổi sản phẩm lỗi miễn phí trong 7 ngày.
Miễn phí hướng dẫn kỹ thuật từ xa

Cisco C9200-48T-E Catalyst 9200 48-port data only, Network Essentials

Thiết bị chuyển mạch C9200 48 ports GE data Cisco C9200-48T-E

Switch Model	C9200-48T-E
Downlinks total 10/100/1000 or PoE+ copper ports	48 ports data
Uplink configuration	Modular uplink options (C9200-NM-xx)
Default primary AC power supply	PWR-C6-125WAC
Fans	FRU redundant
Software	Network Essentials
Stacking support	StackWise®-160
Stacking bandwidth	160 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes	14,000
IPv4 routing entries	4,000
IPv6 routing entries	2,000
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,600
DRAM	4 GB
Flash	4 GB
VLAN IDs	4096
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Wireless bandwidth per switch	Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity	176 Gbps
Forwarding rate	130.95 Mpps
Chassis Dimensions	4.4 x 44.5 x 35.0 cm
Weight	5.0 Kg

Các tùy chọn (Options) : Module network, Stacking cables và DNA licenses

Network modules cho Cisco Catalyst C9200
Product number	Product description
C9200-NM-2Y	Catalyst 9200 2 x 25 GE Network Module
C9200-NM-2Q	Catalyst 9200 2 x 40GE Network Module
C9200-NM-4G	Catalyst 9200 4 x 1GE Network Module
C9200-NM-4X	Catalyst 9200 4 x 10GE Network Module
C9200-NM-BLANK	Catalyst 9200 BLANK (No) Network Module
Stacking cables cho Cisco Catalyst C9200
Product number	Product description
C9200-STACK-KIT	Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
Software DNA licenses cho Cisco Catalyst C9200
Product number	Product description
C9200-DNA-E-48-3, -5, -7	C9200 48 port Cisco DNA Essentials; 3, 5 and 7 year term
C9200-DNA-A-48-3, -5, -7	C9200 48 port Cisco DNA Advantage; 3, 5 and 7 year term
C9200-DNA-P-48-3, -5, -7	C9200 48 port Cisco DNA Premier; 3, 5 and 7 year term
C9200-DNA-E-A-3, -5, -7	C9200 Cisco DNA Essentials to Advantage upgrade; 3, 5 and 7 year term
