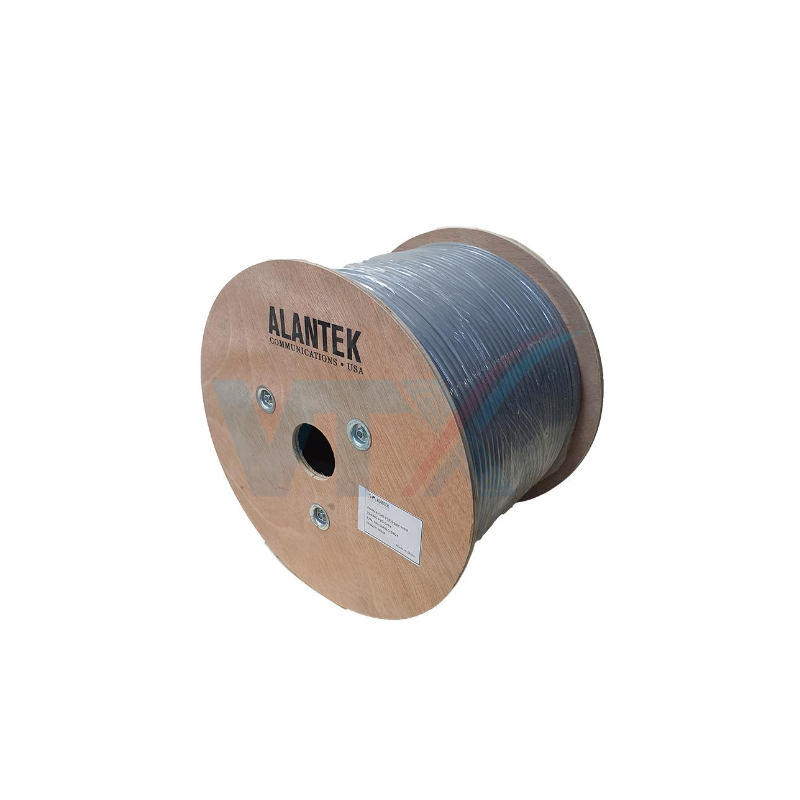

Cáp mạng Alantek Cat6 FTP 23AWG 301-60F8LG-03GY
Cáp mạng Alantek Cat6 FTP 4-pair màu xám trắng
Part Number: 301-60FULG-03GY hoặc 301-60F8LG-03GY
- Cáp mạng Alantek Cat6 Twisted Pair Cable is designed to support high-bandwidth application up to 10Gigabit Ethernet. The cable is composed of 23 AWG bare solid copper conductors insulated with High Density Polyethylene (HDPE) insulation. For the unshielded cable, the 4 twisted pairs are separated by a flexible PE separator and the cable is completed with an Outer Jacket. For the shielded cable, an additional layer of Aluminium Foil covers the 4 twisted pairs.
- Application: Horizontal wiring, suitable for application up to 10 Gigabit Ethernet.
- Standards: TIA/EIA 568B, ISO/IEC 11801, UL 444.
- Color: Grey.
- Packaging: 305m/reel.
Specifications
- Conductor
o Material: Solid bare copper.
o Size: 23AWG x 4 Pairs.
o Diameter: 1/0.56 ± 0.01mm.
- Conductor Insulation
o Material: HDPE
o Min. Ave. Thickness: 0.23 mm
o Min. Thickness at any point: 0.22 mm
o Deameter: 1.03 ± 0.01 mm
- Jacket
o Material: PVC
o Min. Ave. Thickness: 0.52 ± 0.02 mm
o Min. Thickness at any point: 0.50 mm
o Diameter: 6.4 ± 0.2mm
- Max Tensile Load (Installation): 100N.
- Sản xuất tại Trung Quốc.
